Settings

Use the Setup options to set up and adjust Wi-Fi, Wi-Fi printer setup and selection, user information, default language, display settings, sounds settings, shop information, user management, connected accessories, and device information.

Tapto return to the previous screen orto return to the Main Menu.

Wi-Fi

Use WiFi to view, add, and delete wireless networks.

Tap on the WiFi icon to display a list of detected and configured WiFi networks.

Adding A Network

1.Tapto add a WiFi network.

A list of detected wireless networks is displayed with • next to the selected network.

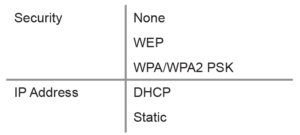

2. Tap > to access the network Security and IP Settings.

3. Tap → to configure the selected network.

4. Once the network has been successfully configured, tap  to return to the list of available configured networks. A • indicates the selected network.

Deleting A Network

1. Tap a displayed network.

2. Tapto delete the network and tap Yes to confirm.

User Settings (Admin Only)

Modify Usernames and Passwords.

User Management (Admin Only)

1. Tapto access User Management functions.

2. Tapto display the current logged in Admin user.

3. Select a displayed user by tapping it.

4. Tapto edit the Username, Password, and User Type (Standard or Admin).

5. Tap X when complete to return to the User Management screen.

6. Tapto delete the selected user and Yes to confirm.

Language Settings

Use the Language & Input function to select the default system language used by the tool. User defaults also include Test Results, Email, and Print languages.

System Language

Select the charger default standard language.

Test Result Language

Select the default language for the charger to use for all displayed tests and results.

Display Settings

Adjust the charger display including the Brightness, Sleep Time, and Dim Time. Auto Brightness can also be turned on and off.

Brightness

Adjust the display Brightness by tapping and holding the slider, then moving it right or left to make the screen brighter or darker.

Auto Brightness

Enable and disable Auto Brightness by taping on the check box.

Sleep Time

Adjust the amount of elapsed time before the charger goes into a power saving (Sleep) mode. Default = 2 minutes.

Dim Time

Adjust the amount of elapsed time before the charger goes into a power saving (Dim) mode. Default = 1 minute.

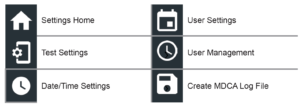

Shop Information (Admin Only)

Access default Shop Information including Store Name, address, and phone number. Also access battery test defaults including rating, temperature units, and decimal separator. Use also to adjust the tester date and time settings.

Shop Information

Use the onscreen keypad to enter the store name, address, and phone number.

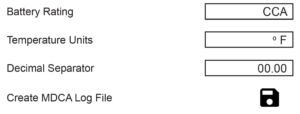

Test Settings

1. Tapto access the test setting defaults. Tap the boxes or icons to change the values.

Battery Rating

Default battery rating units used when testing batteries.

Temperature Units

Default temperature units used when measuring battery temperature.

Decimal Separator

Default number display using commas or periods separators.

Create MDCAL Log File

The MDCA function is used by Midtronics technical support.

2. Tapto return to the Shop Information screen.

Date/Time Settings

1. Tapto access the Date/Time setting defaults.

Select Time Format

12 or 24 Hour Format

Select Date Format

Month/Day/Year, Day/Month/Year, or Year/Day/Month

Select Time Zone

Time zone in which the analyzer will be operated.

Set Date

Tap  to enter the month, day, and year. Tap Set to save the date or Cancel to exit without saving.

Set Time

Tap to enter the hours, minutes, and AM/PM. Tap Set to save the date or Cancel to exit without saving.

2. Tapto return to the Shop Information screen.

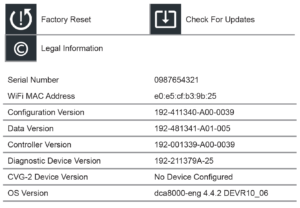

Version Information

Use Version Information to display WiFi connection data the DSS Controller, Diagnostic Device, and CVG-2 Device software version information.
